PU / PIR Sandwich Panel Production Line
Main Technical Parameters/Specifications of PU / PIR Continuous Sandwich Panel Production Line Item Parameter Material Type Color steel sheet; galvanized sheet, Aluminum sheet ...Main Technical Parameters/Specifications of PU / PIR Continuous Sandwich Panel Production Line
| Item | Parameter | |
| Material | Type | Color steel sheet; galvanized sheet, Aluminum sheet |
| Thickness | 0.4-0.8 | |
| Width | ≤1250(Max) | |
| Suitable size of panel | Length | 2000-16000 |
| Width | 600-1200 | |
| Thickness | 30-200 (Not including height of corrugation) | |
| Production speed | 3-8 (Adjustable) | |
| Valid length of double belt conveyor(mm) | 16000-36000 | |
| Work pressure on pouring foam | 150-200 | |
| Total power | About 300 | |
| Total size(Length×Width×Height)(mm) | 130000×15000×6000 | |
Features of PU / PIR Sandwich Production Line
- Beautiful and applicable, multiple functions, such as thermal isolation, sound isolation and flame retardance.
- Using heated air recycle oven, strictly control the temperature of PU foaming and solidification in suitable range.

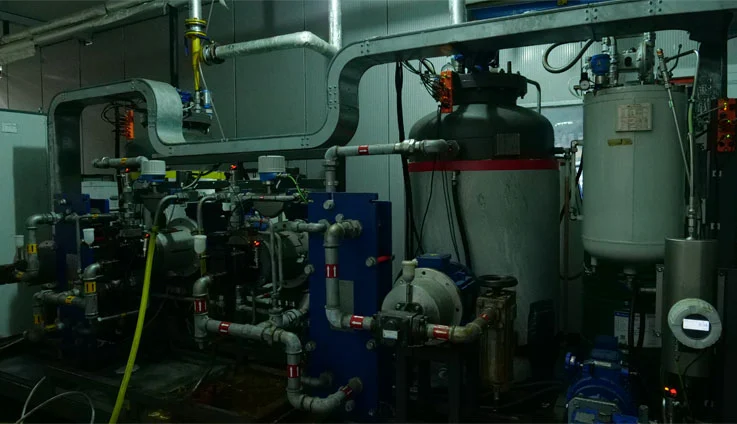

- Using high-pressure foaming system, precise measurement, high stability, little dust in the locale, protect the worker’s health.
- Using 141B or Pentane as foaming agent. Instead of carbon chloral-fluoride, make the PU foaming treatment become an environmental production craft.
- Special double belt conveyor, flat surface of sandwich panel, even thickness, anti-pattern
- Operation system controlled by PLC computer, personal design and simple operation.

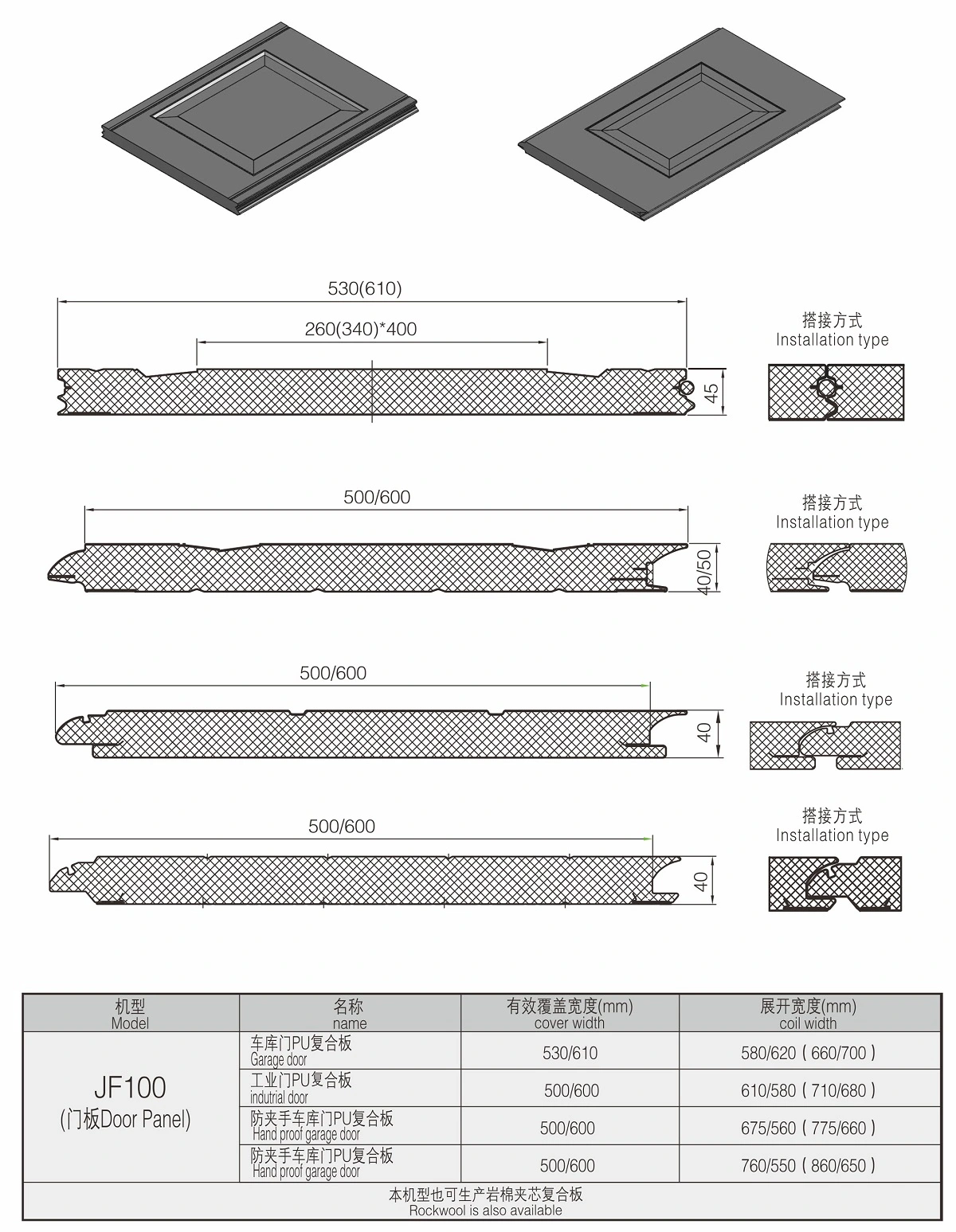

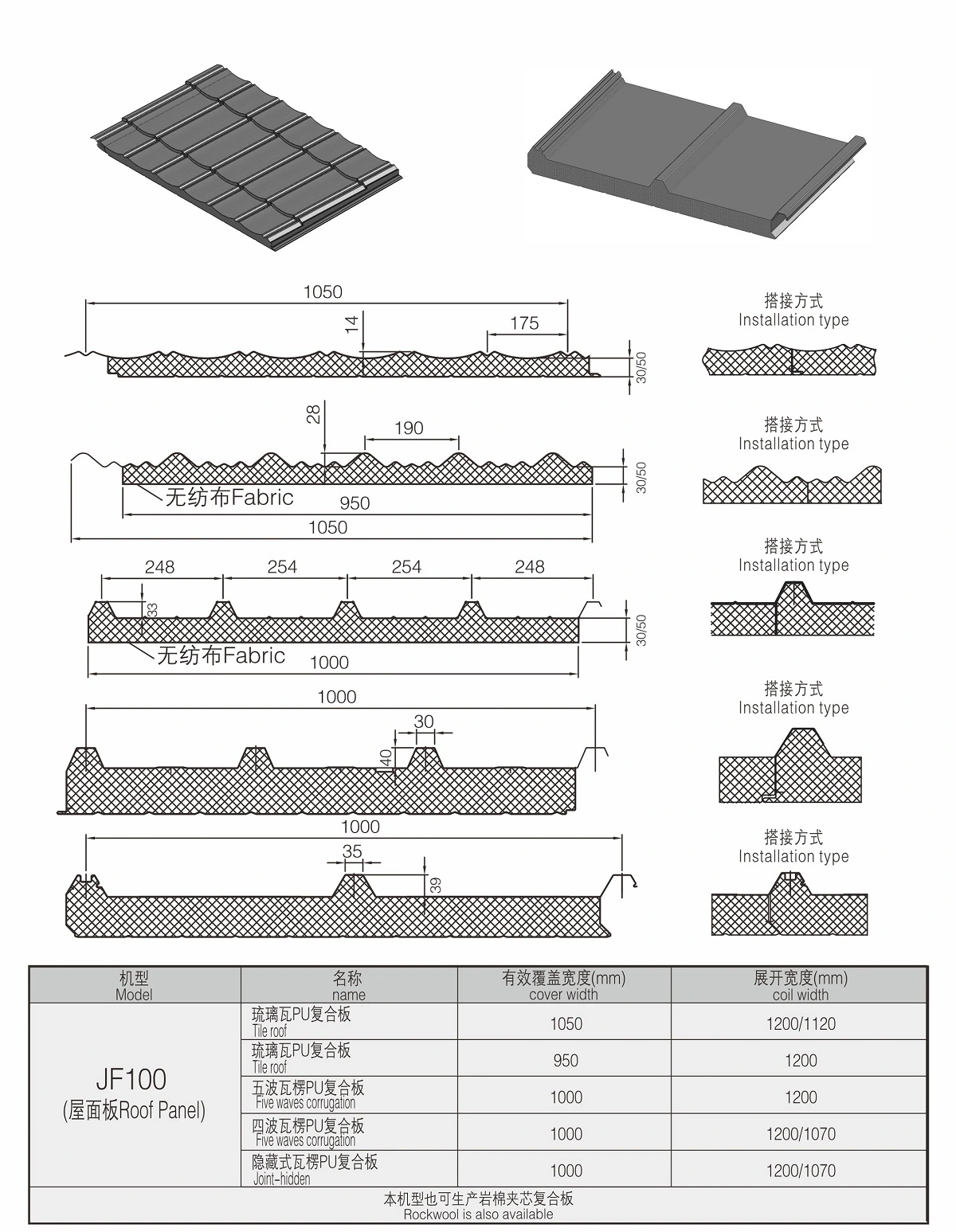

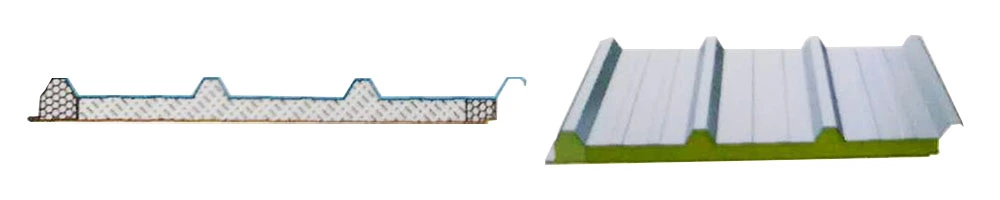

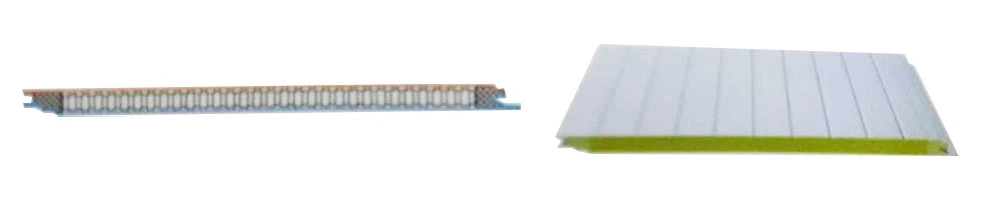

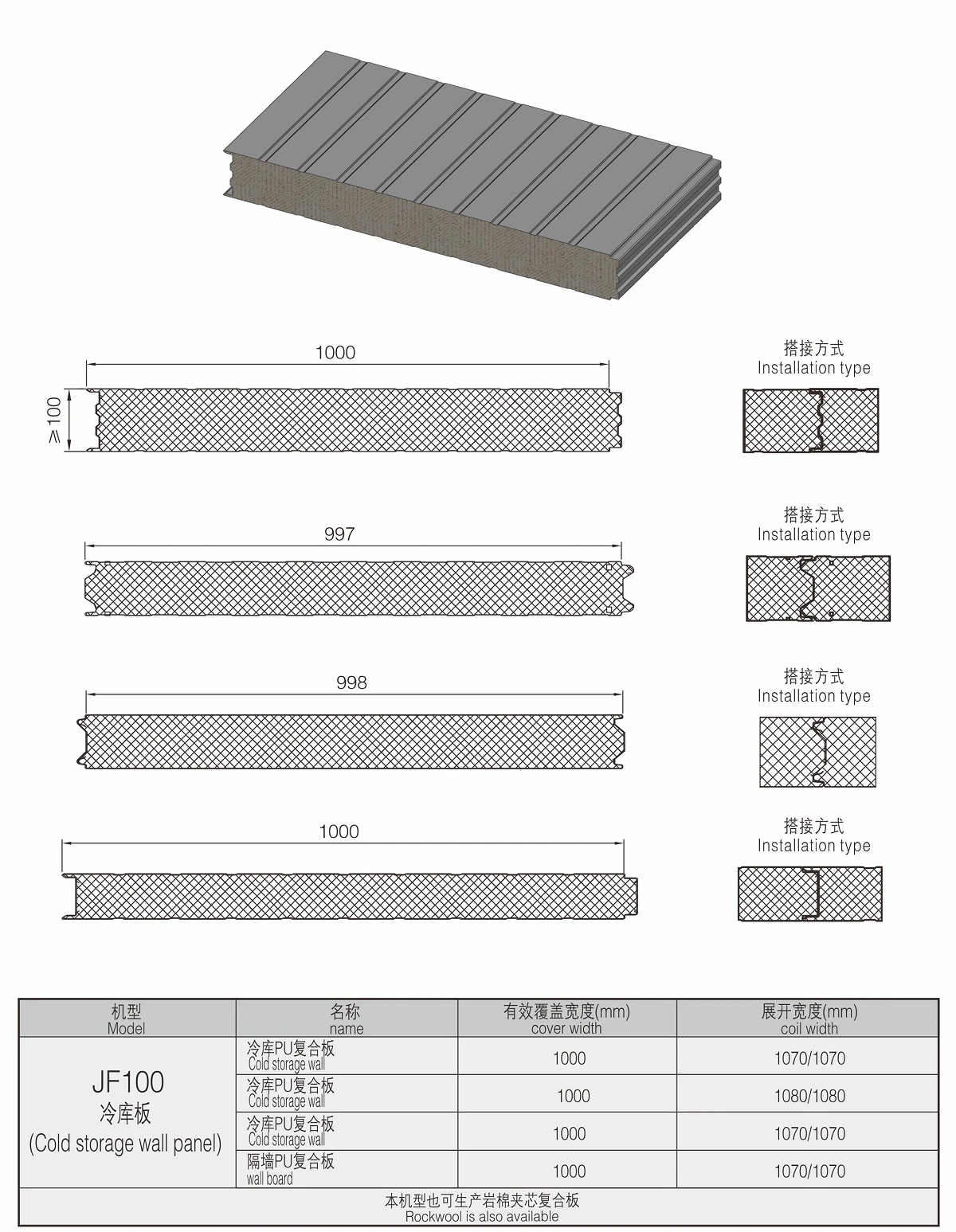

Panel Drawings Of PU / PIR Continuous Sandwich Panel Production Line
Working Process Layout Of PU / PIR Sandwich Panel Production Line Manufacturing

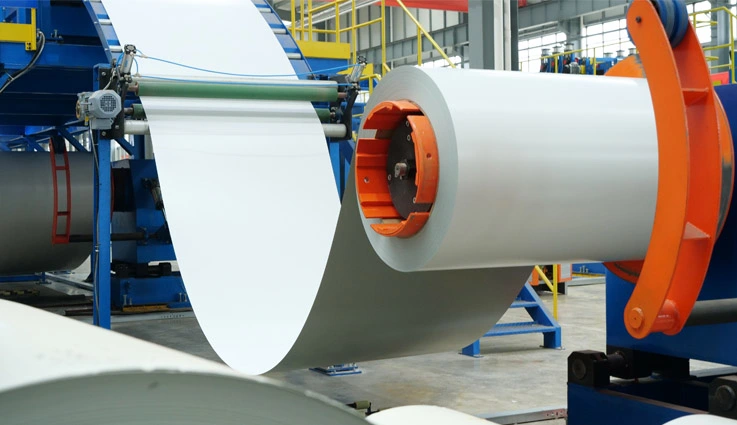

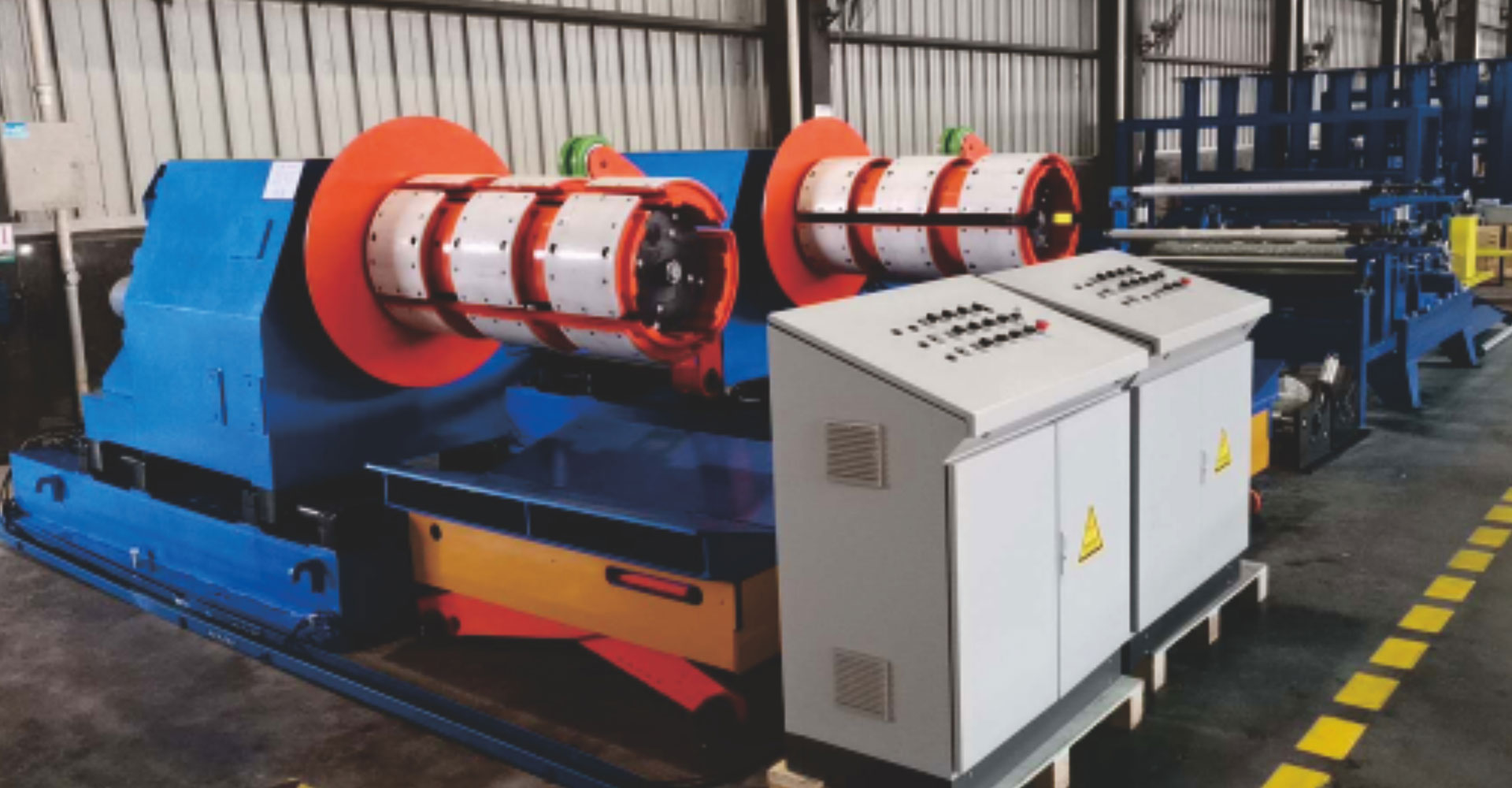

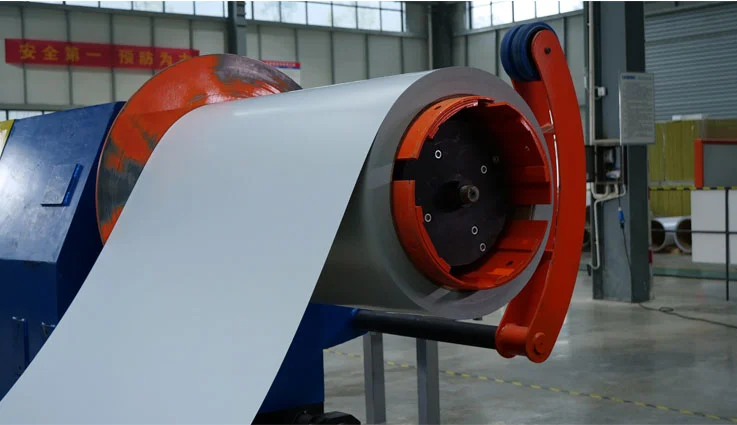

Decoiler transverse location—Lifting stage move outside—coil hoisting—lifting stage move inside—Lifting stage rise—-Lifting stage car move to inside position—Decoiler axle expanding (—Pressing-arm press tightly)—-Lifting stage reset position—decoiler uncoiling material

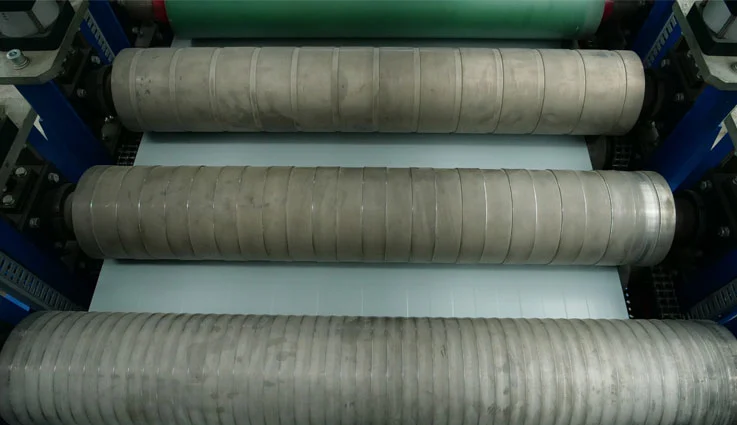

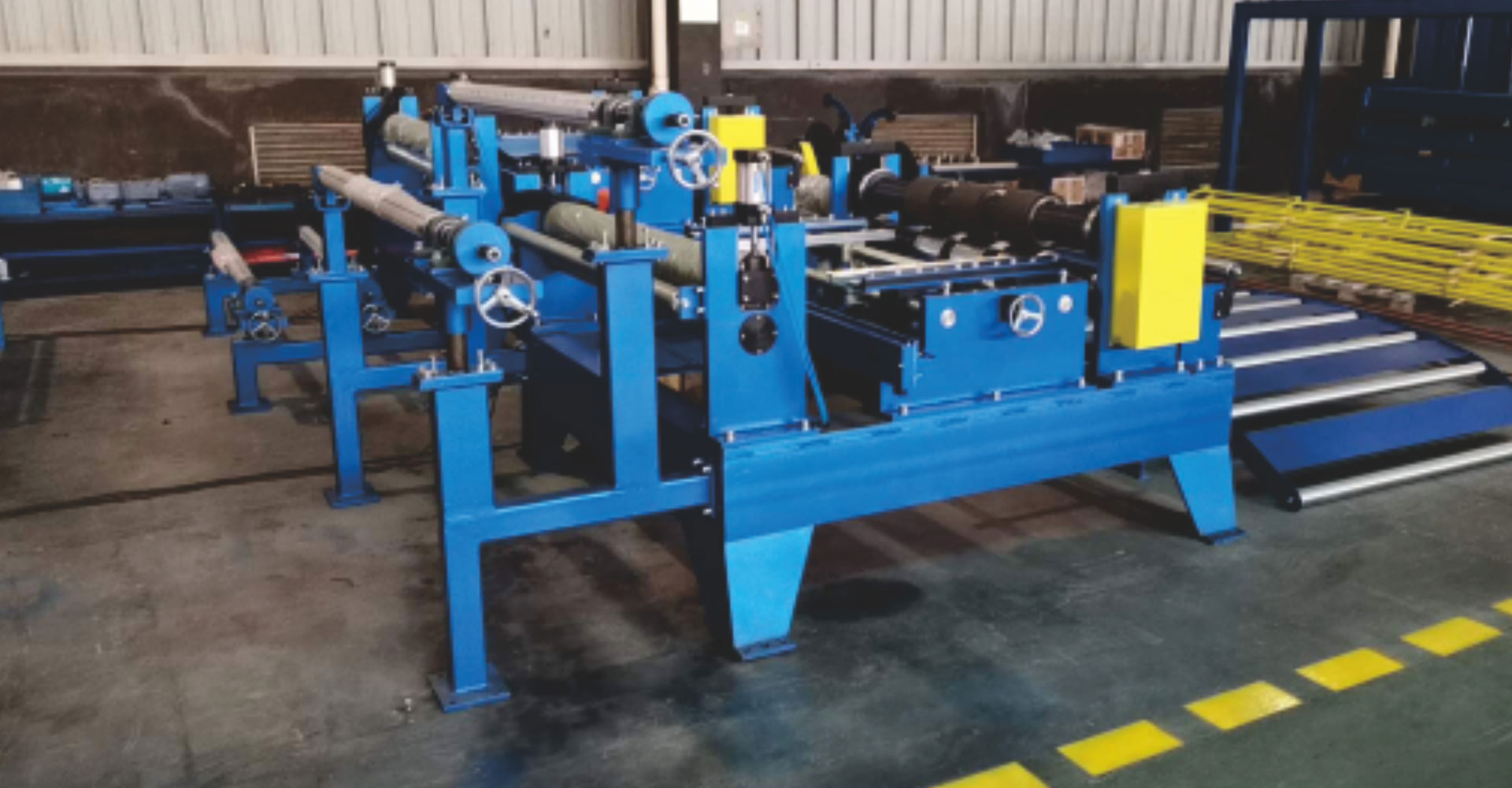

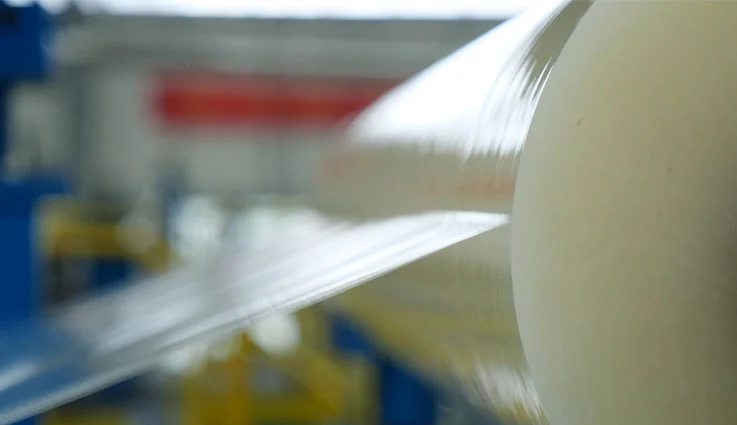

Filming the plastic film on the panel surface.
The pre-cutter is used for cutting the single skin panel when it needs to change to be another profile.

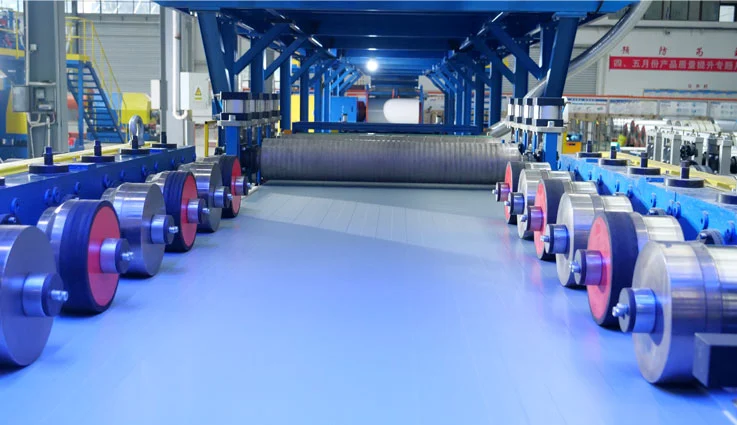

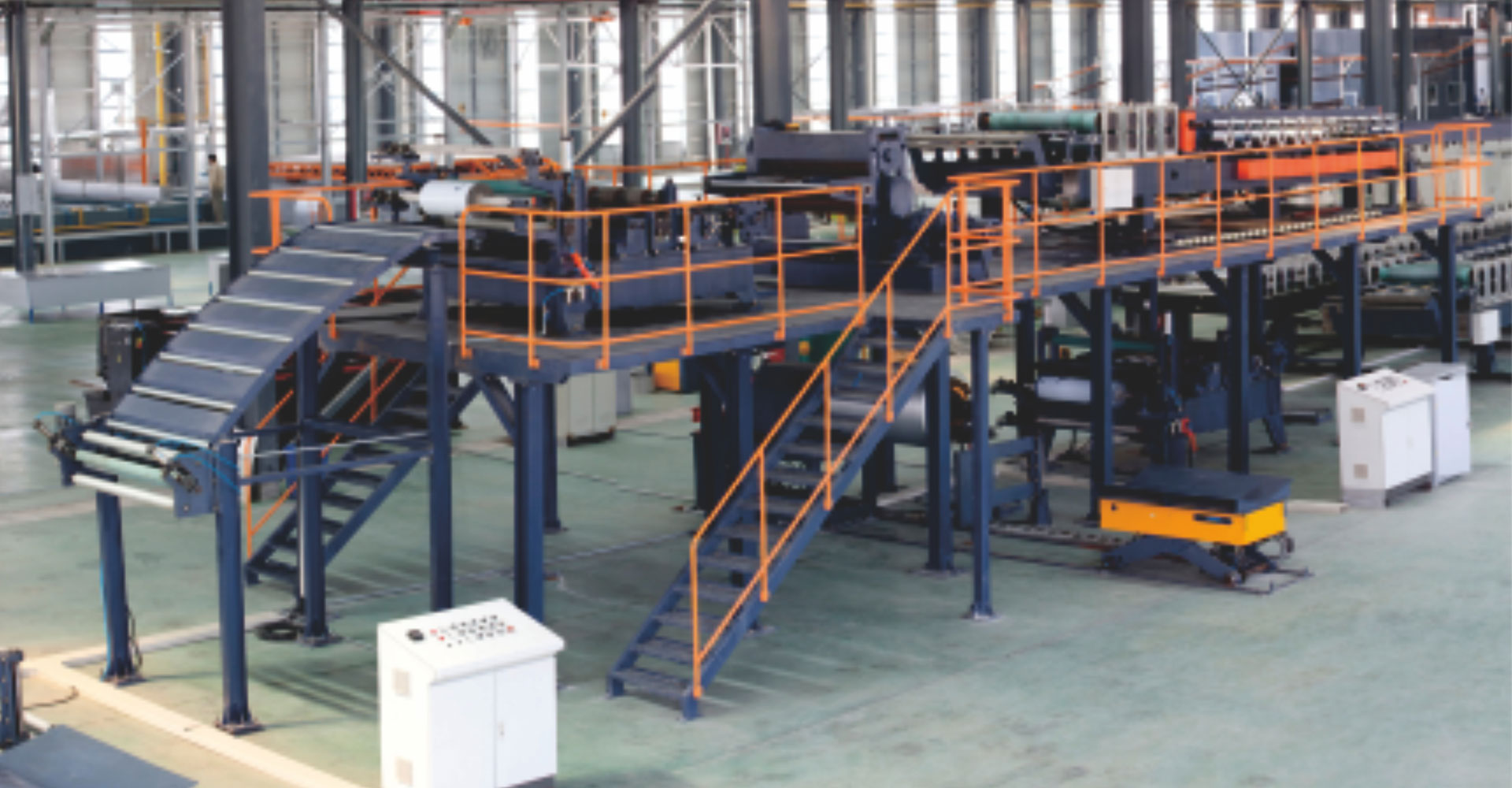

There is one set roll forming machine for upper layer profiles. That is double head roll forming machine.
The upper roll forming machine consists of two sets of forming rollers, one set of guiding system, one set of the transmission system, one set of frame.

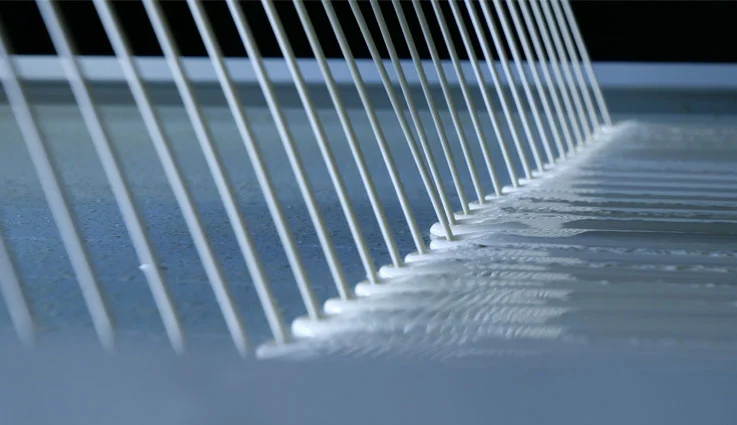

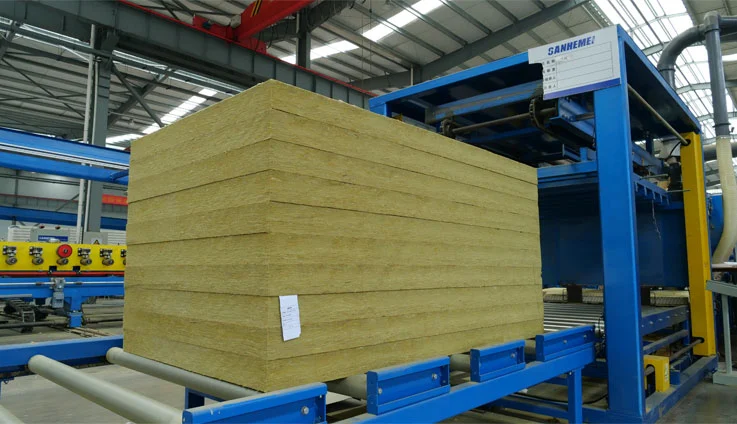

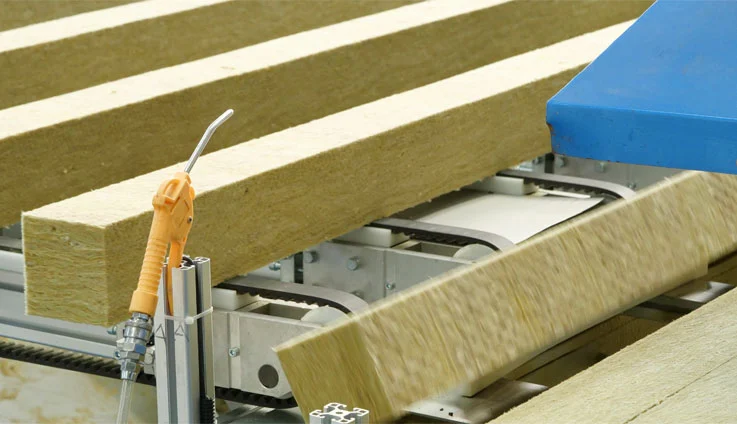

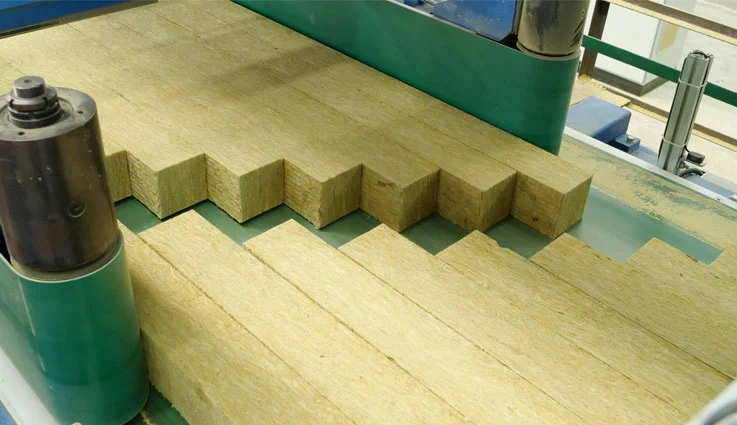

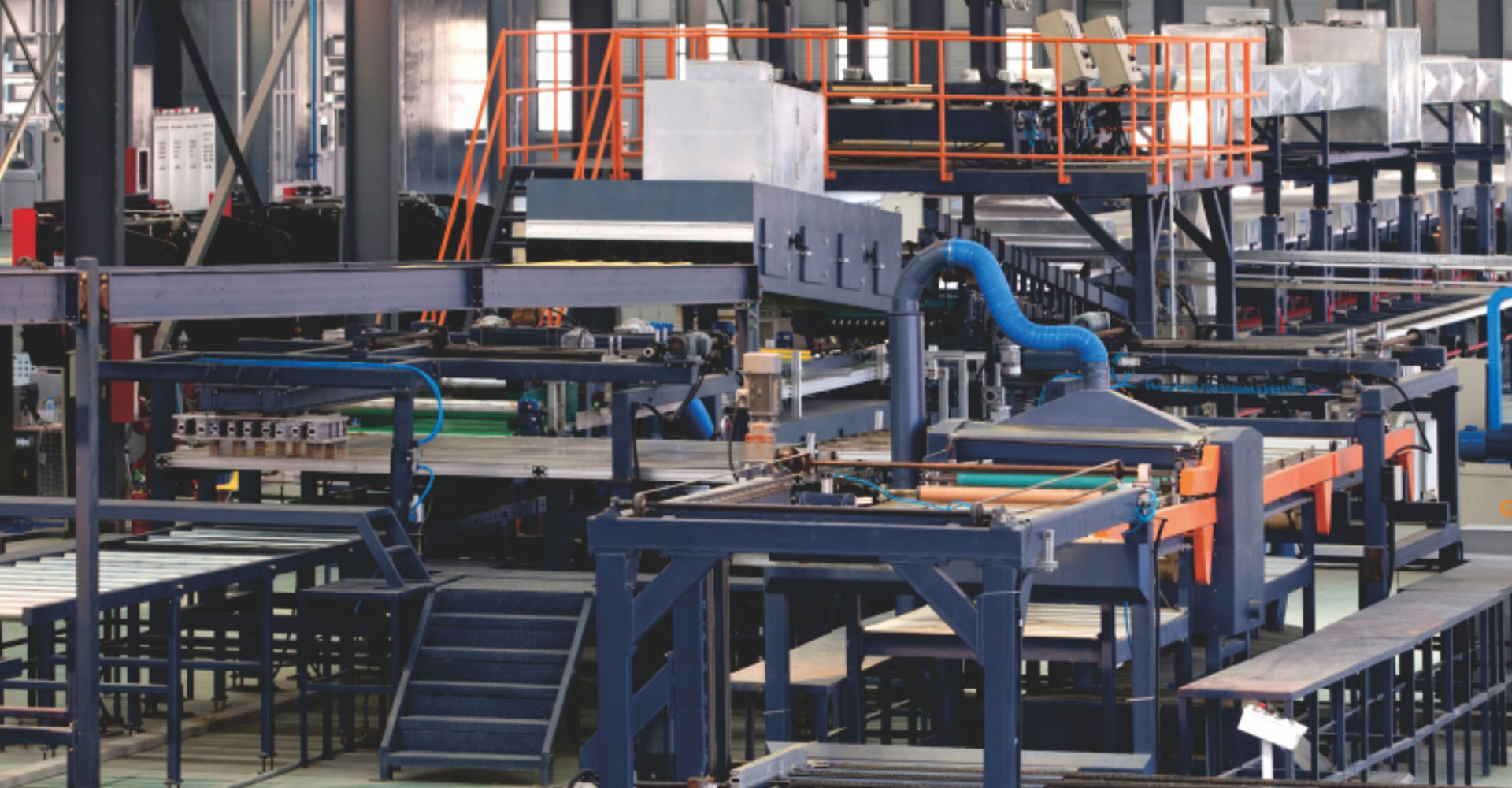

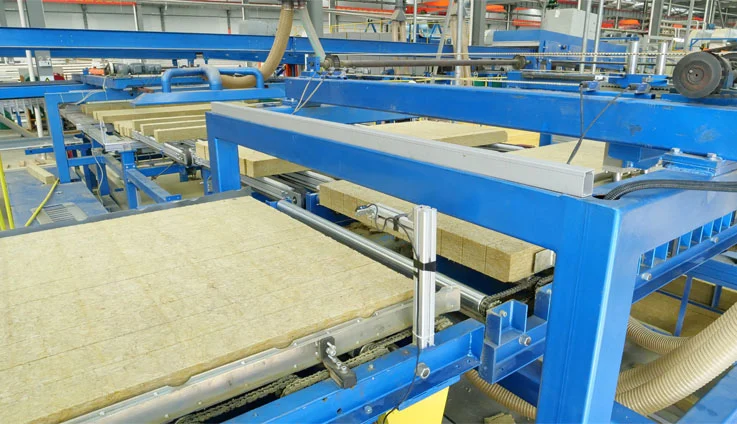

The rock wool system consists of rock wool lifting device, rock wool slitting device rock wool turning device, upper and lower foam spraying system, two components side sealing foaming machine, dust collecting device and conveyor, etc.

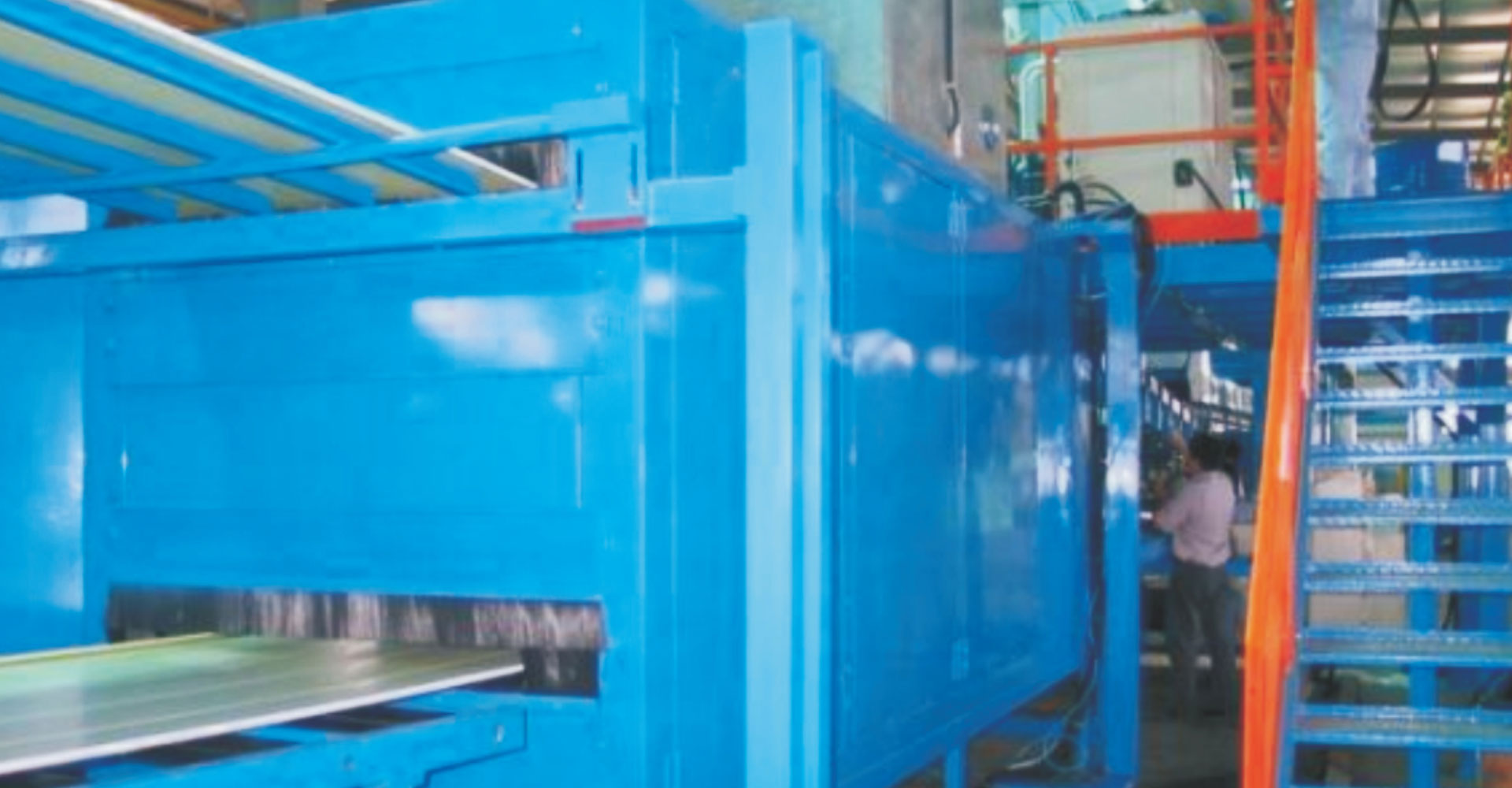

Preheat the oven—–Adjust the temperature—–panel forwards—–Send panel into the oven—–Guiding roller transmission—–Measure the temperature of panel—-Sent panel out of the oven

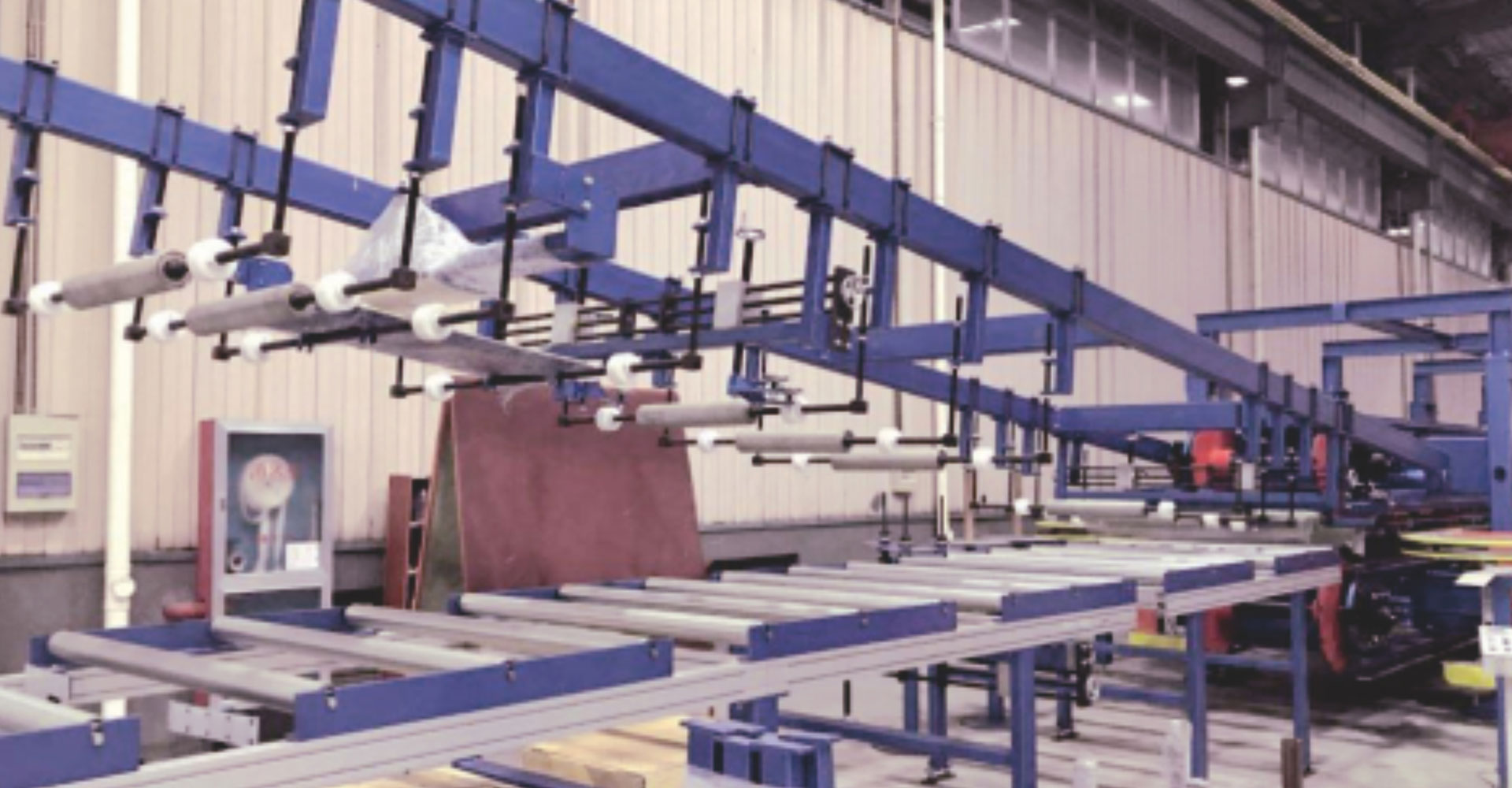

Accessories of foaming system include sheet transmission conveyor, adhesive tape sealing device, sponge sealing device.

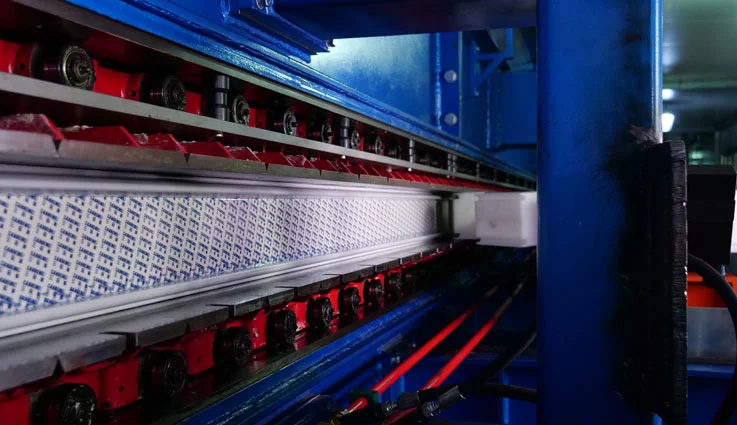

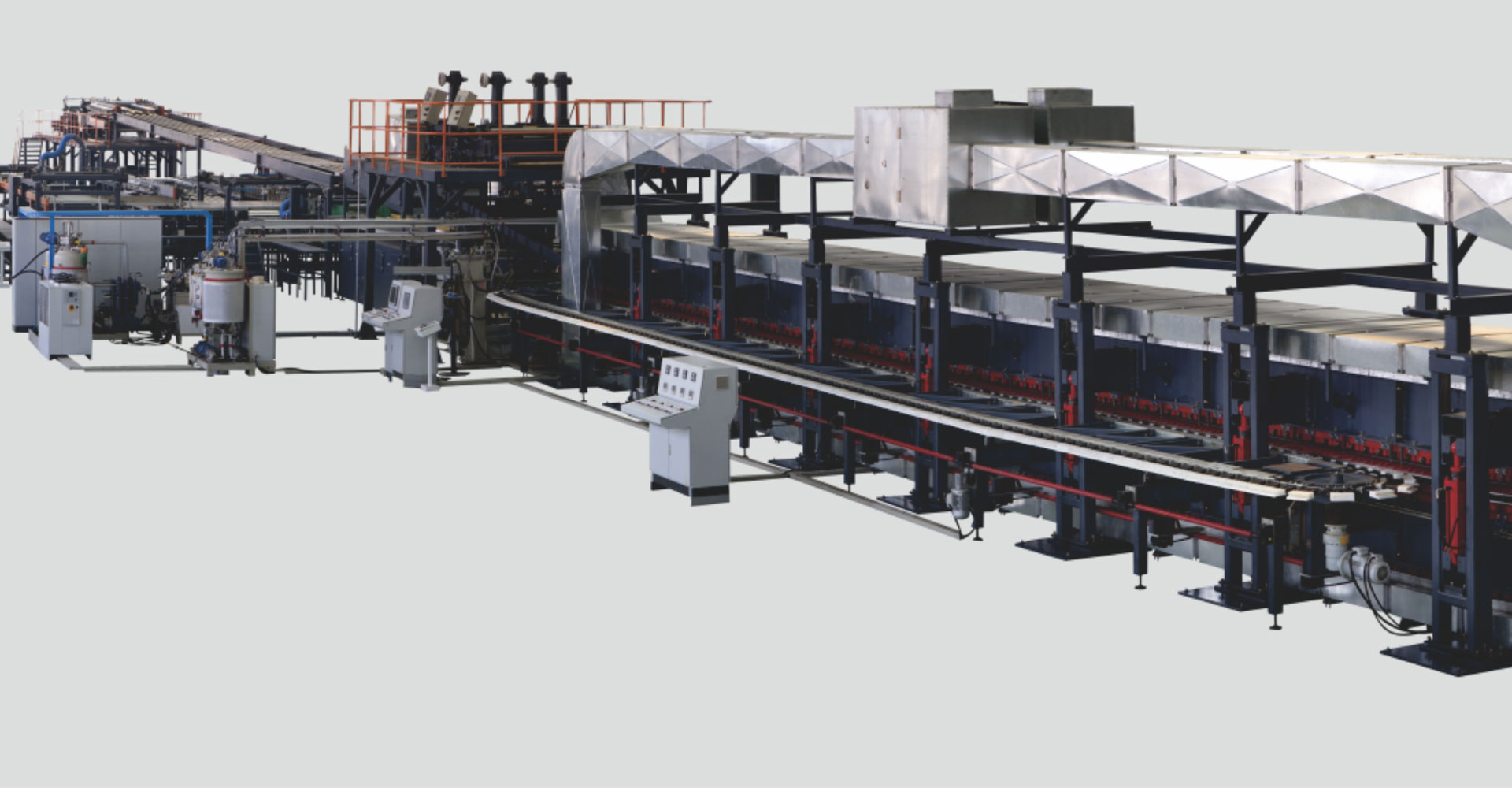

DBL is mainly used to overcome the expansibility of foaming and make it solid, and decide panel thickness and production speed. Side belt is overcome horizontal expansion and decide the width of panel and guiding to the panels.

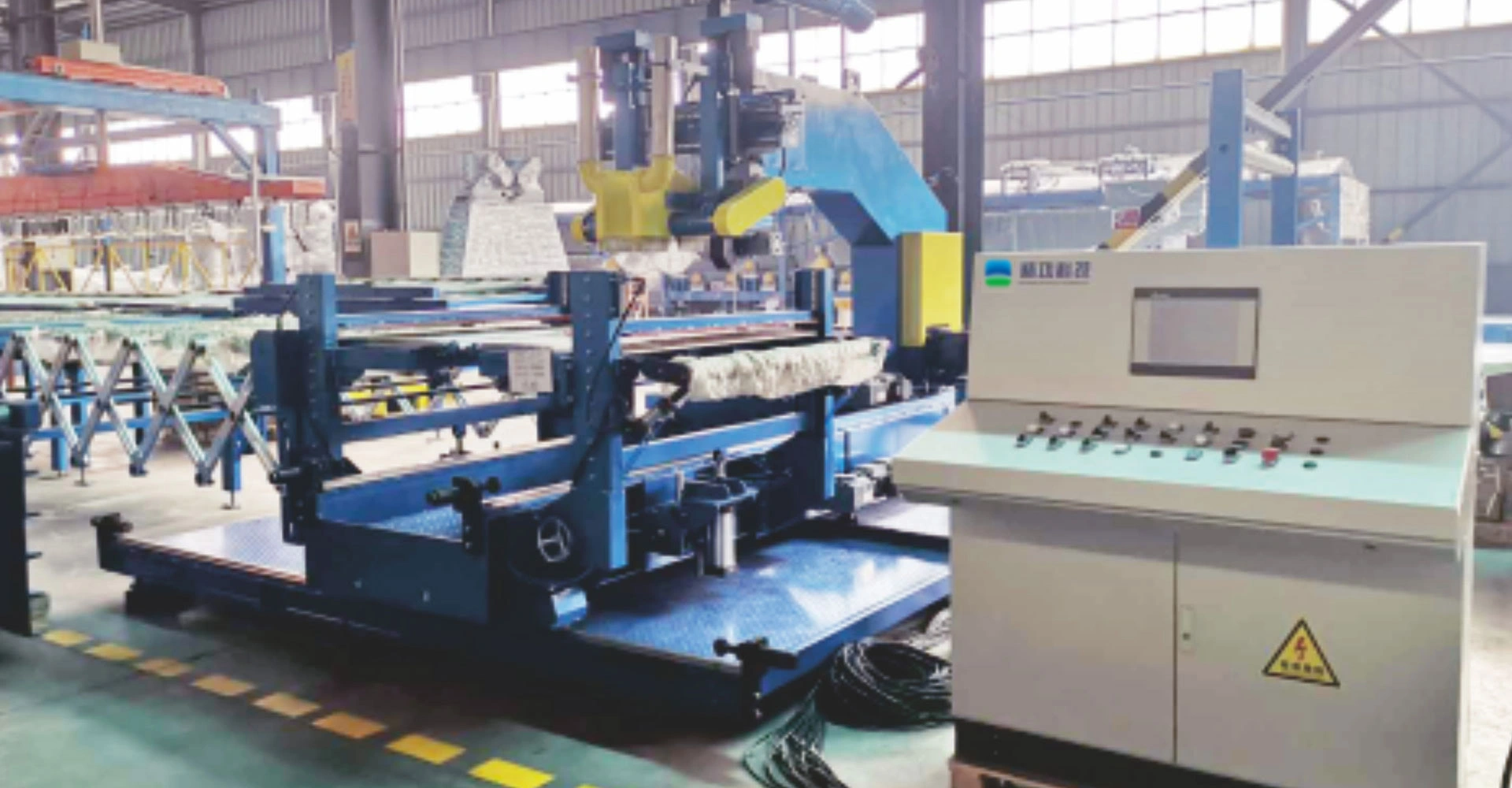

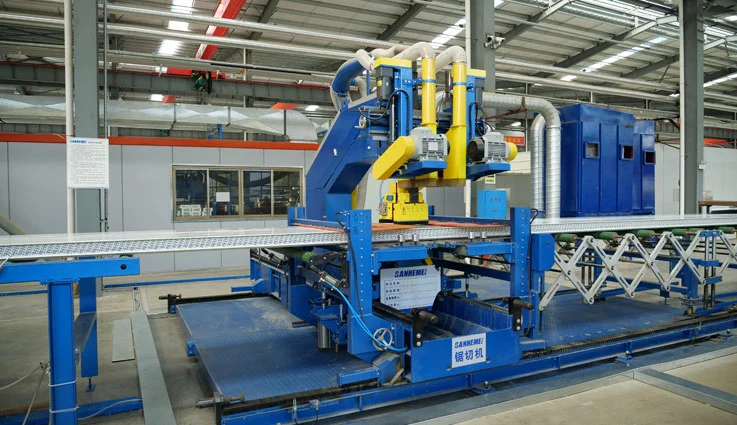

Motor power: 5.5kw
Min. Cutting length: 2m (variable according to production speed)
Motor power for band saw moving: 1.5kw
Max panel thickness: max. 250mm
Cutting distance: max.1200mm
Total power: 20 kw

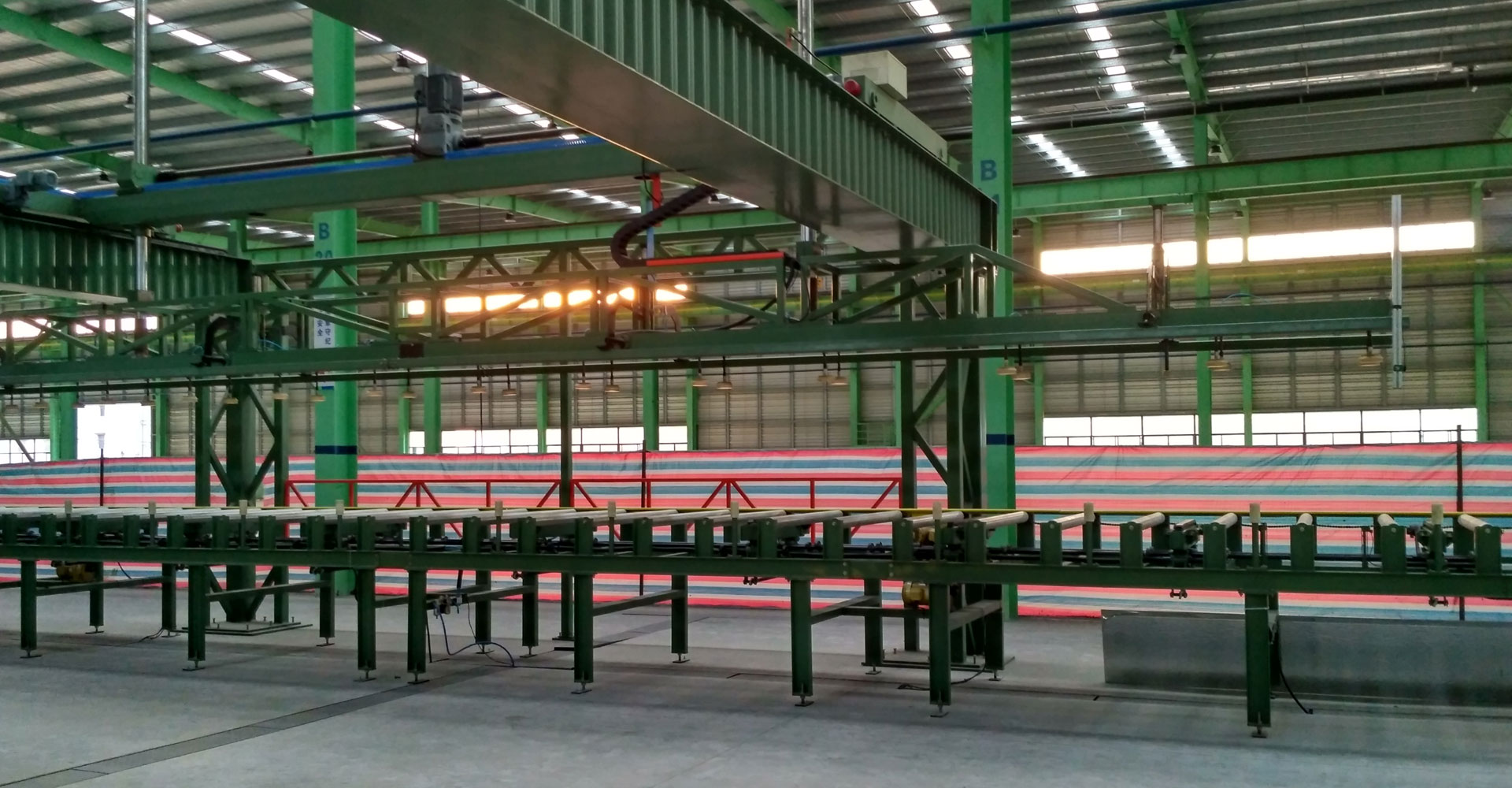

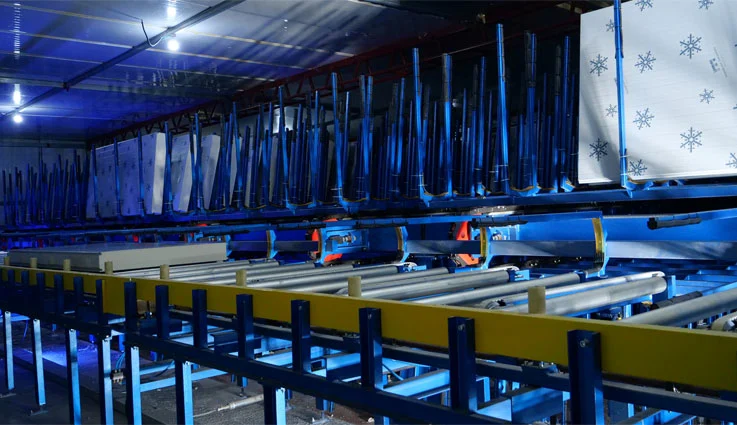

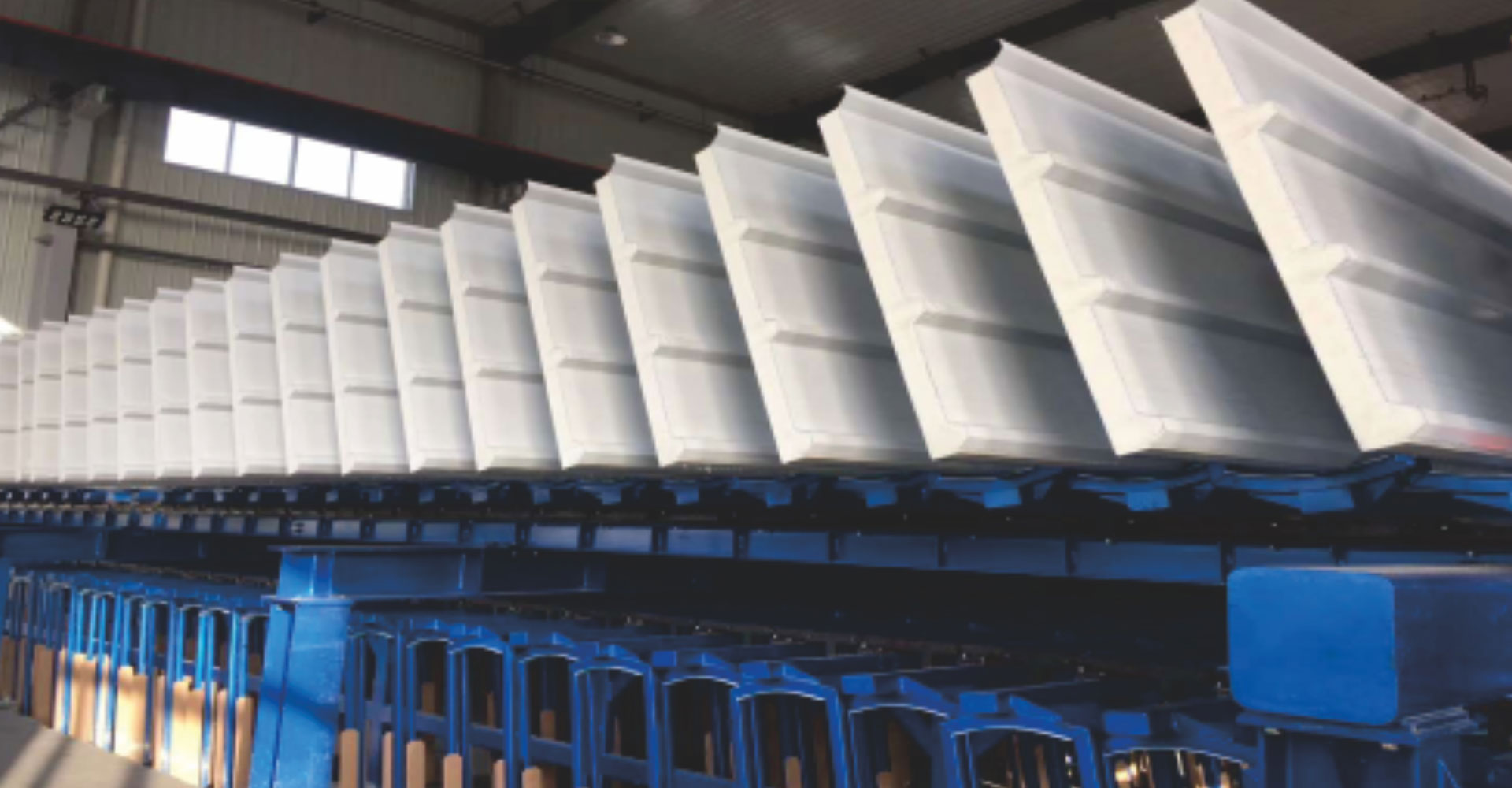

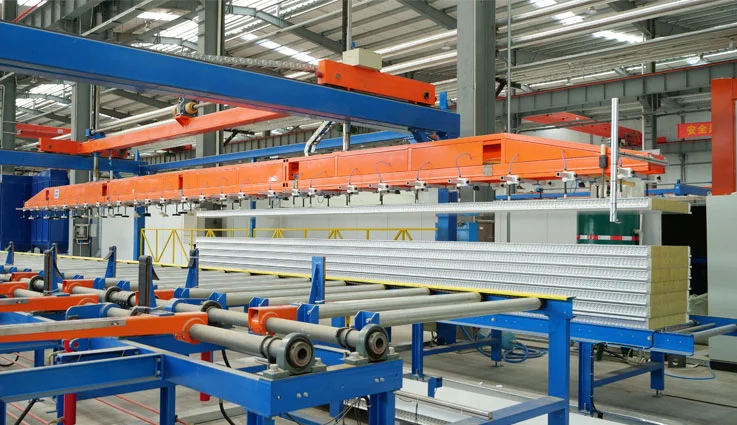

The cooling system consists of front and back conveyor, two sets of lifting belt conveyor, cooling processing conveyor and electric system.
There are sensors equipped on the front conveyor, two panels can be stacked at the same time if the length is less than 7.5m; one panel can be stacked if the length is more than 7.5m.

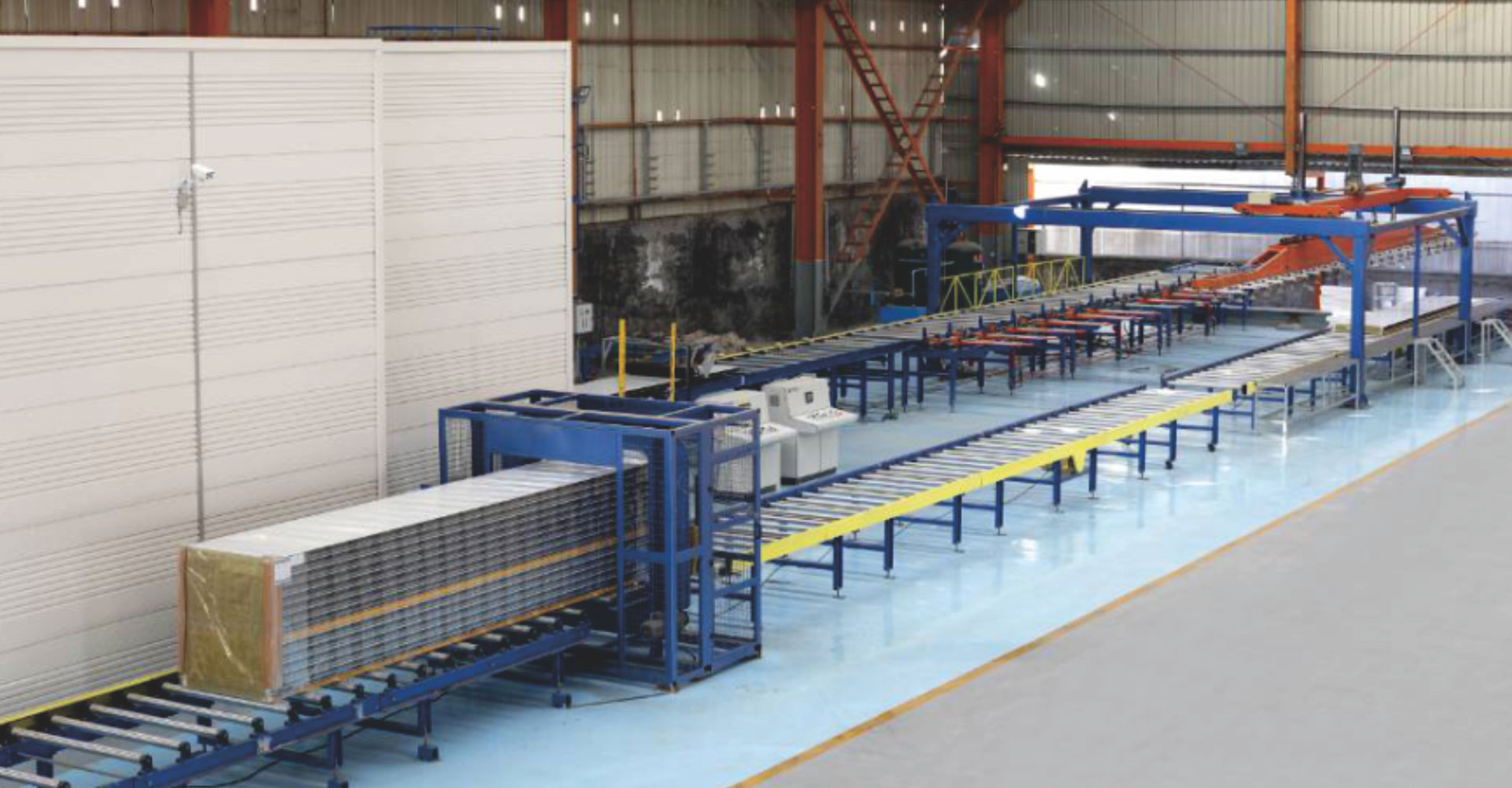

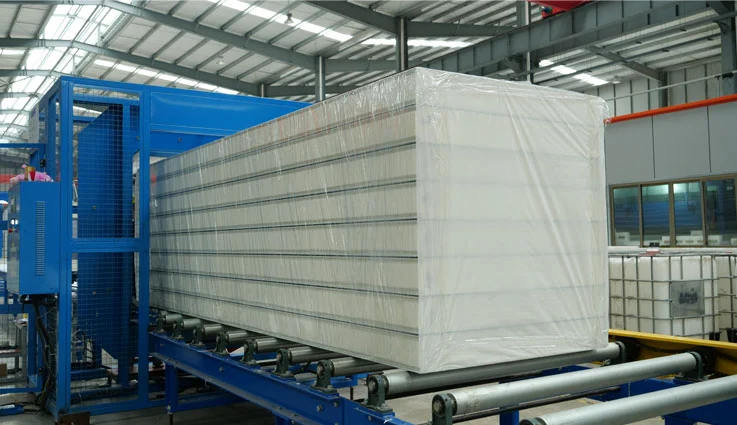

It mainly consists of conveyor roller and packing machine.
The wrapping device of packing machine is driven by a reducer motor, adopts gearwheel and toothed bar driving structure to rotate quickly to cover the film on the surface of products.

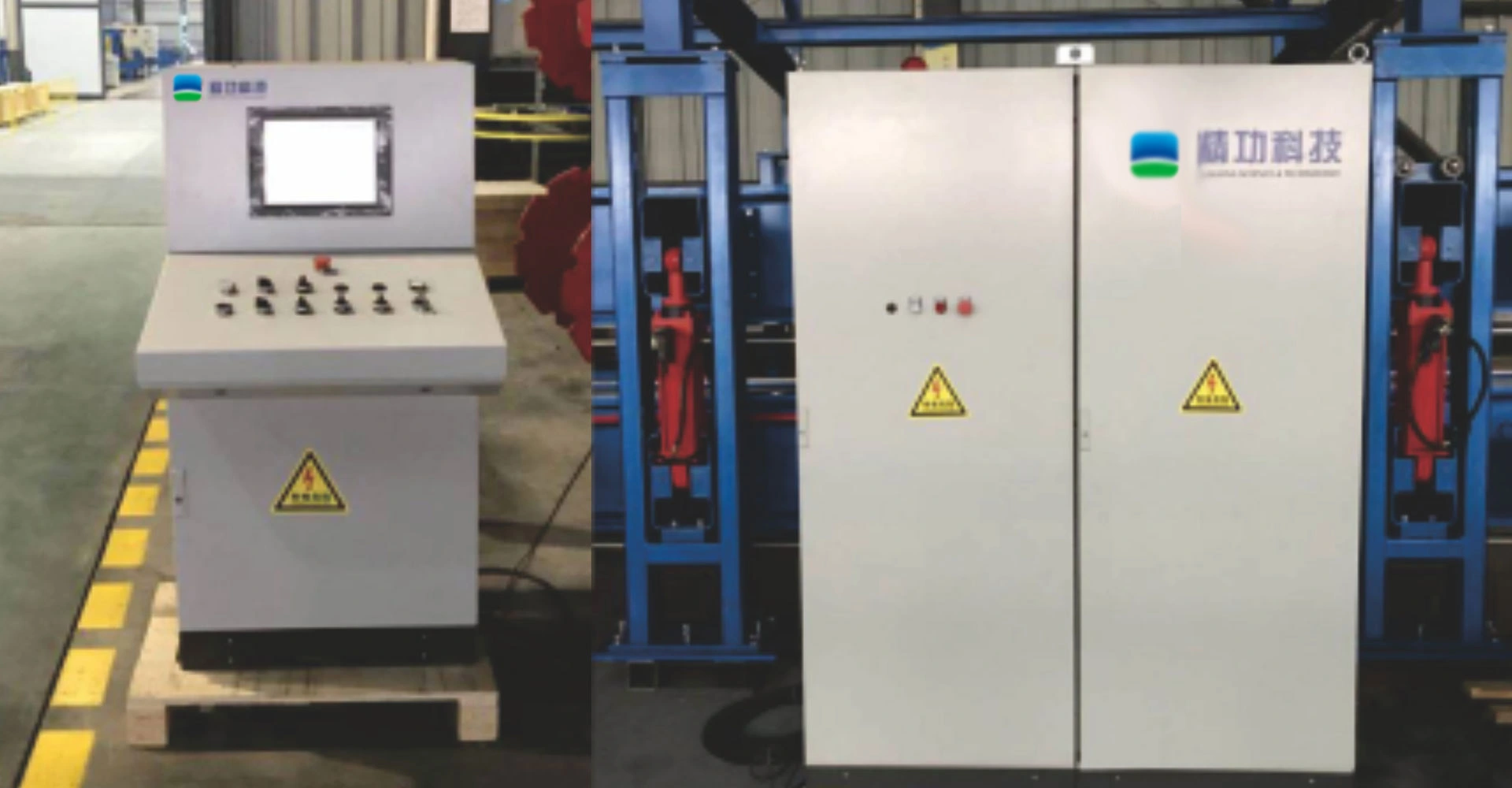

Electric system is included in the machines.

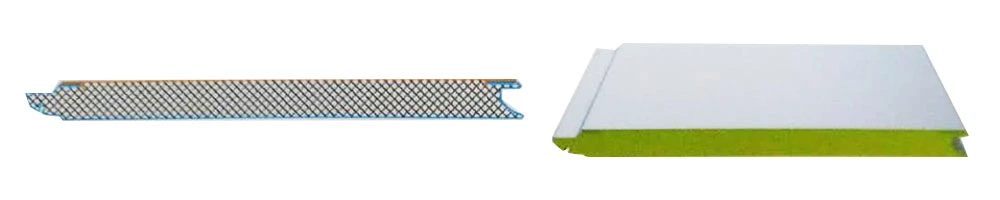

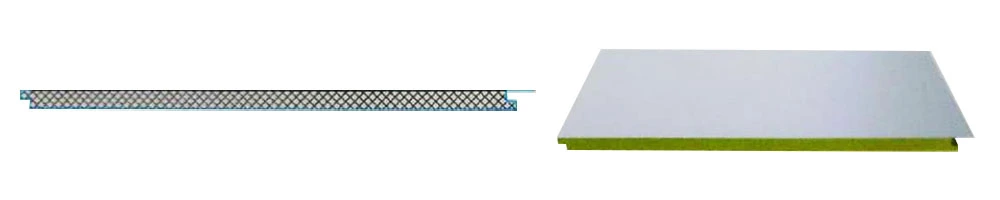

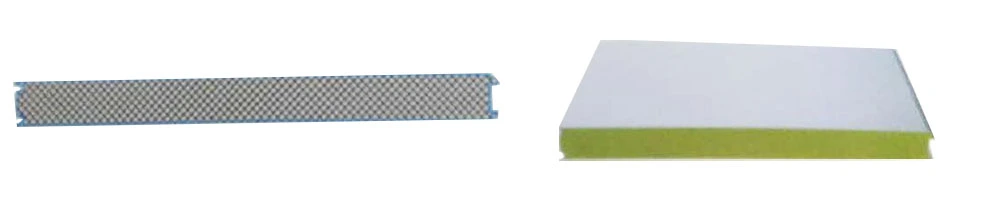

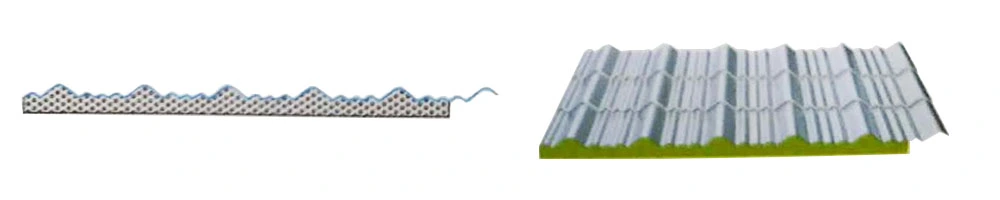

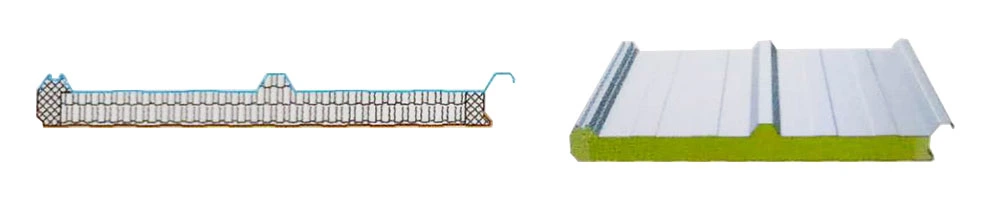

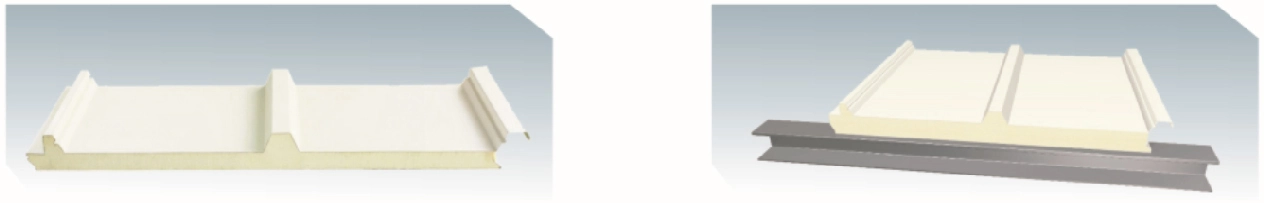

Profiles of Polyurethane Continuous Sandwich Panel Production Line

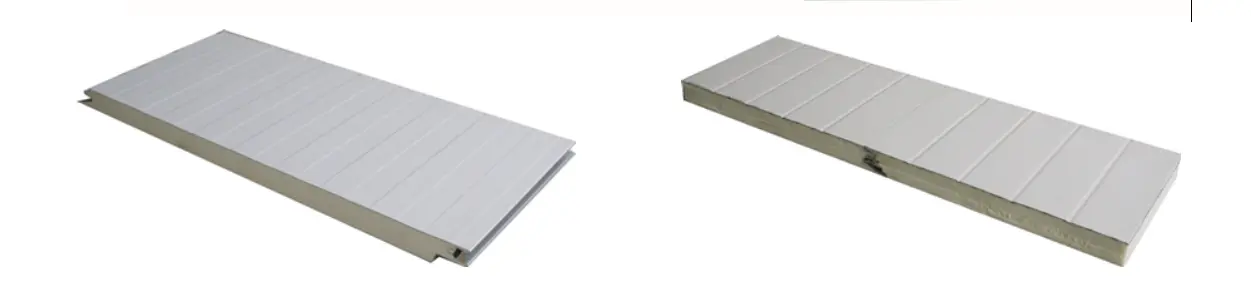

PU sandwich panel is used to make energy saving wall panel, energy saving roof panel, refrigeration house panel, garage door panel, etc. It is a potential building enclosed material with a broad use and a new type of energy saving material advocated by the ministry of construction.
